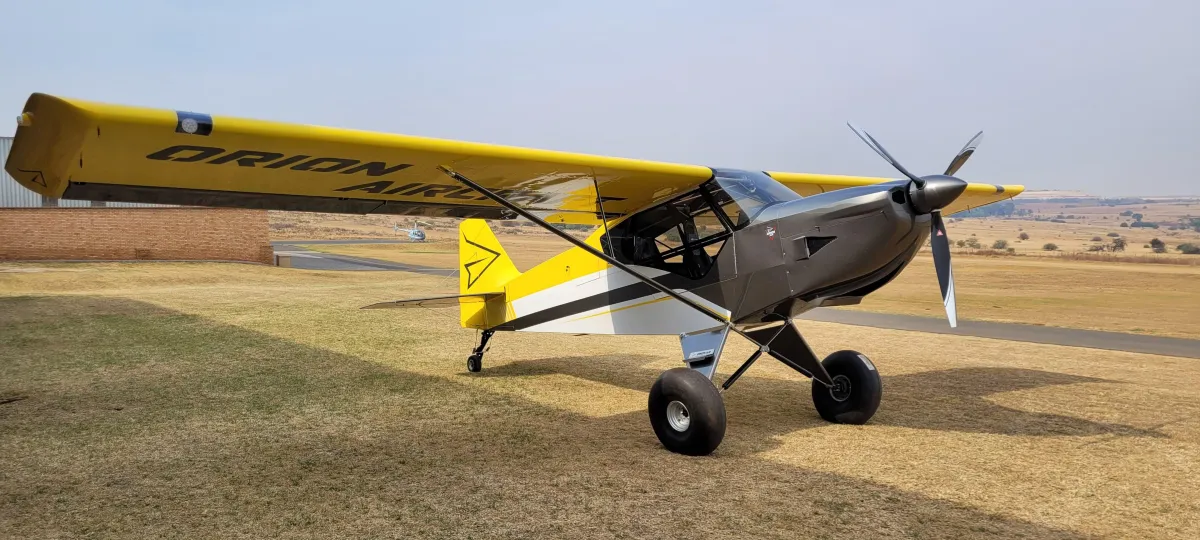

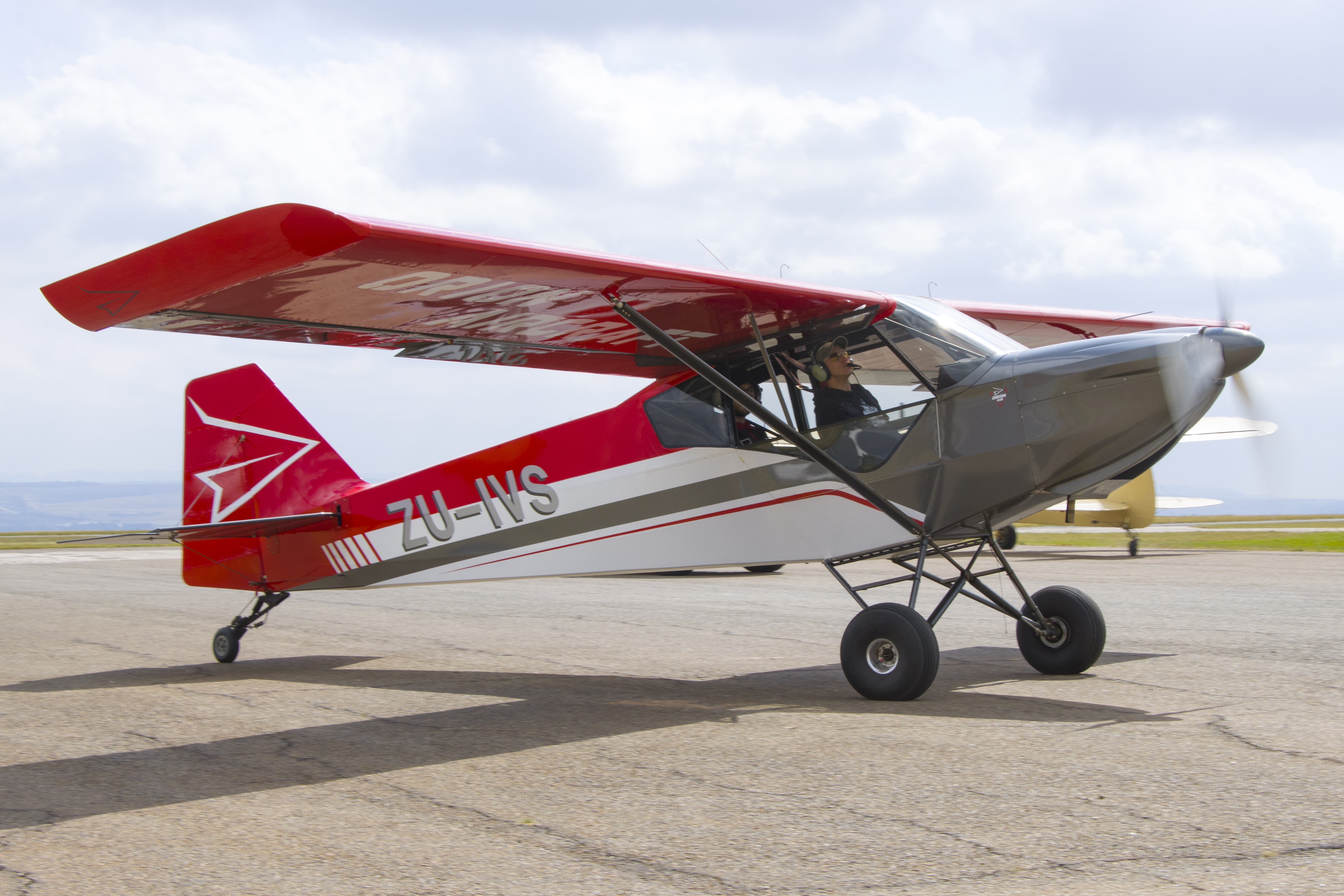

Orion Aircraft is on a mission to redefine backcountry flying. Designed with a 4130 chromoly fuselage the Orion Cub is longer, wider and taller than most in its class.
Using a modern Riblett airfoil, the wings utilize an aluminum monocoque structure, incorporating slotted flaps and FRISE aileron designs. Offering a large envelope from safe slow flight to a decent cruise speed with harmonized handling throughout, while optimizing the advances of modern lightweight aircraft engines to carry 925 lb. useful load.
Wingspan
Length
Cockpit Width
Empty Weight
Max Weight Normal
Max Weight LSA
Useful Load
Fuel Capacity
Engine Range
32.15 ft
22.6 ft
30.12 in
923 lb
1,763 lb
1,320 lb
840 lb
38 gal
100hp – 200hp
Maximum Speed VNE
Cruise Speed
Stall Speed
Endurance Standard
Range Standard
130kt / 150mph
108kt / 124mph
23kt / 27mph
7 hours
700 miles
Wingspan - 32.15 ft
Length - 23.3 ft
Cockpit Width - 30.12 in
Empty Weight - 838 lb
Max Weight Normal - 1,763 lb
Max Weight LSA - 1,320 lb
Useful Load - 925 lb
Fuel Capacity - 33 gal
Engine Range - 100hp – 200hp
Maximum Speed VNE - 130kt / 150mph
Cruise Speed - 100kt / 115mph
Stall Speed - 23kt / 26mph / 42kph
Endurance Standard - 6 hours
Range Standard - 550 miles
*Based on 100hp Rotax 912 ULS
Our builder assistance program makes flying your new Orion Cub easy with step-by-step guidance--from ordering your kit to the first flight. We will be with you through the entire building process. Our goal is to make building your dream a fun, life-changing experience. Fly your dream sooner and lose the hassle of building it all by yourself!
